Is your LED TV displaying a dim screen, dark spots, or no picture at all? The issue might be faulty backlights. Replacing them can restore your TV to its former brightness. Here’s a detailed guide to help you through the process.
Tools You’ll Need
- Screwdriver set (Phillips and flathead)
- Plastic pry tools or spudger
- Replacement LED backlight strips (check your TV model)
- Multimeter (optional, for testing)
- Anti-static wrist strap (recommended)
- Gloves (to avoid fingerprints on LEDs)
Step 1: Unplug and Prepare Your Workspace
🔌 Safety first! Unplug the TV and let it sit for at least 30 minutes to discharge any residual power. Work on a clean, flat surface to avoid losing screws or damaging components.
Step 2: Remove the TV Stand and Back Cover
- If your TV has a stand, unscrew and remove it.
- Carefully detach the back panel by removing all screws.
- Use a plastic pry tool to gently separate the clips holding the cover in place.
Step 3: Locate and Access the Backlight Strips
- Once the back cover is off, locate the LED backlight strips (usually behind the LCD panel).
- You may need to disconnect cables and remove additional layers (diffuser sheets, reflectors).
Step 4: Disconnect and Remove the Old LEDs
- Note the orientation of the LED strips before removing them.
- Carefully unplug the ribbon cables or connectors powering the LEDs.
- Remove any screws or adhesive holding the strips in place.

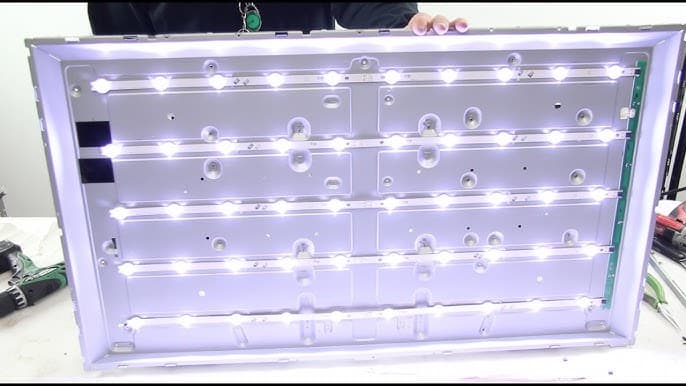

Step 5: Install the New LED Backlight Strips
- Place the new strips exactly where the old ones were.
- Secure them with screws or adhesive if needed.
- Reconnect the ribbon cables, ensuring proper alignment.
Step 6: Reassemble the TV
- Carefully put back the diffuser sheets and reflectors.
- Reattach the LCD panel (avoid pressing too hard to prevent damage).
- Secure the back cover and screws.
Step 7: Test the TV
- Plug the TV back in and power it on.
- Check for even brightness and ensure no dark spots remain.
Troubleshooting Tips
- If the TV still doesn’t light up, double-check all connections.
- Use a multimeter to verify power to the LED strips.
- If issues persist, the power supply or mainboard may be faulty.
Final Thoughts
Replacing LED backlights requires patience, but it’s a cost-effective way to revive your TV. If you’re uncomfortable with DIY repairs, consider consulting a professional.
🔧 Pro Tip: Always order the exact backlight model for your TV to ensure compatibility!
